Description

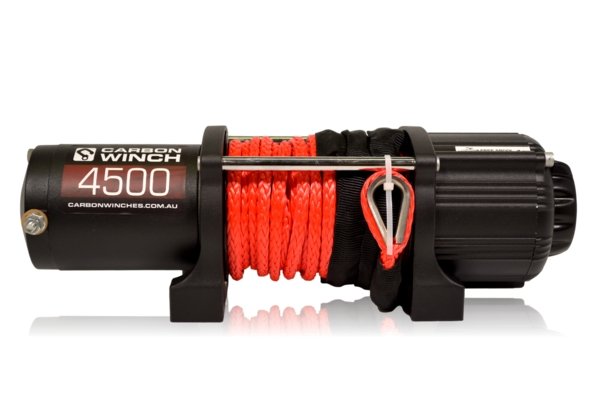

Carbon Offroad 4,500 lb ATV/UTV Winch – Compact, Powerful, and Versatile
Upgrade your off-road adventures and heavy-duty tasks with the Carbon Offroad 4,500 lb Capacity Winch, designed for ATVs, UTVs, side-by-sides, car trailers, and equipment transport.
Enhanced Design & Performance
Since September 2021, this winch has been redesigned for superior durability and ease of use, featuring:
- Improved clutch handle operation for smoother control
- Enhanced sealing for wet and rugged conditions
- Upgraded components & finish for long-lasting performance—all at the same great price
Compact & Easy to Mount
- Integrated mounting plate for quick and simple installation
- Compatible with trailers, ATVs, and buggies
- Easily secures to an existing pedestal or designated winch mount
Wireless Control for Maximum Convenience
- Includes free wireless remote control for effortless operation
- Also features a handlebar mini-rocker switch for direct control from your ATV
Versatile Applications
Ideal for a wide range of uses, including:
- Small car and equipment trailers
- Loading heavy equipment into vans
- Retrieving stuck ATVs, UTVs, or buggies
- Pulling boats (tinnies) onto trailers
- Opening cattle gates on livestock trucks
Key Features:
- 4,500 lb (2,040 kg) line pull for strong and reliable performance
- Power in & out operation with load-holding and dynamic braking
- Sealed permanent magnet motor for high efficiency with low amp draw
- Full metal 3-stage planetary gear train for greater pulling force and durability
- Synthetic rope for lightweight, high-strength, and safer winching
- Aluminium Hawse fairlead to reduce friction and extend rope life
Specifications:
- Model: CW-45
- Rated Line Pull: 4,500 lbs (2,040 kg)
- Motor: 12V DC, 1.9HP
- Remote Control: Handlebar Mini-Rocker & Wireless Remote (included)
- Geartrain: 3-Stage Planetary, 176:1 ratio
- Brake: Dynamic & Mechanical
- Synthetic Rope: 43’ (13m) x 1/4” (6.35mm)
- Mounting Bolt Pattern: 3.0” x 6.59” (76mm x 167mm)
- Winch Dimensions: 14.9” x 4.7” x 4.5” (379mm x 120mm x 115mm)
- Shipping Weight: 12.2 kg
This rugged, compact, and high-performance winch is a must-have for anyone looking to tackle tough terrains or simplify heavy lifting.
Get yours today and make every job easier!
12V DC PERFORMANCE SPECS (first layer of drum)
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 20.4(6.2) | 31 Amps | 1/4500(2040) |
| 1000 | 14.2(4.3) | 65Amps | 2/3750(1700) |
| 2000 | 10.9(3.3) | 96Amps | 3/3510(1595) |
| 3000 | 7.7(2.4) | 125Amps | 4/3300(1500) |
| 4500 | 4.9(1.5) | 175.Amps | |
