Description

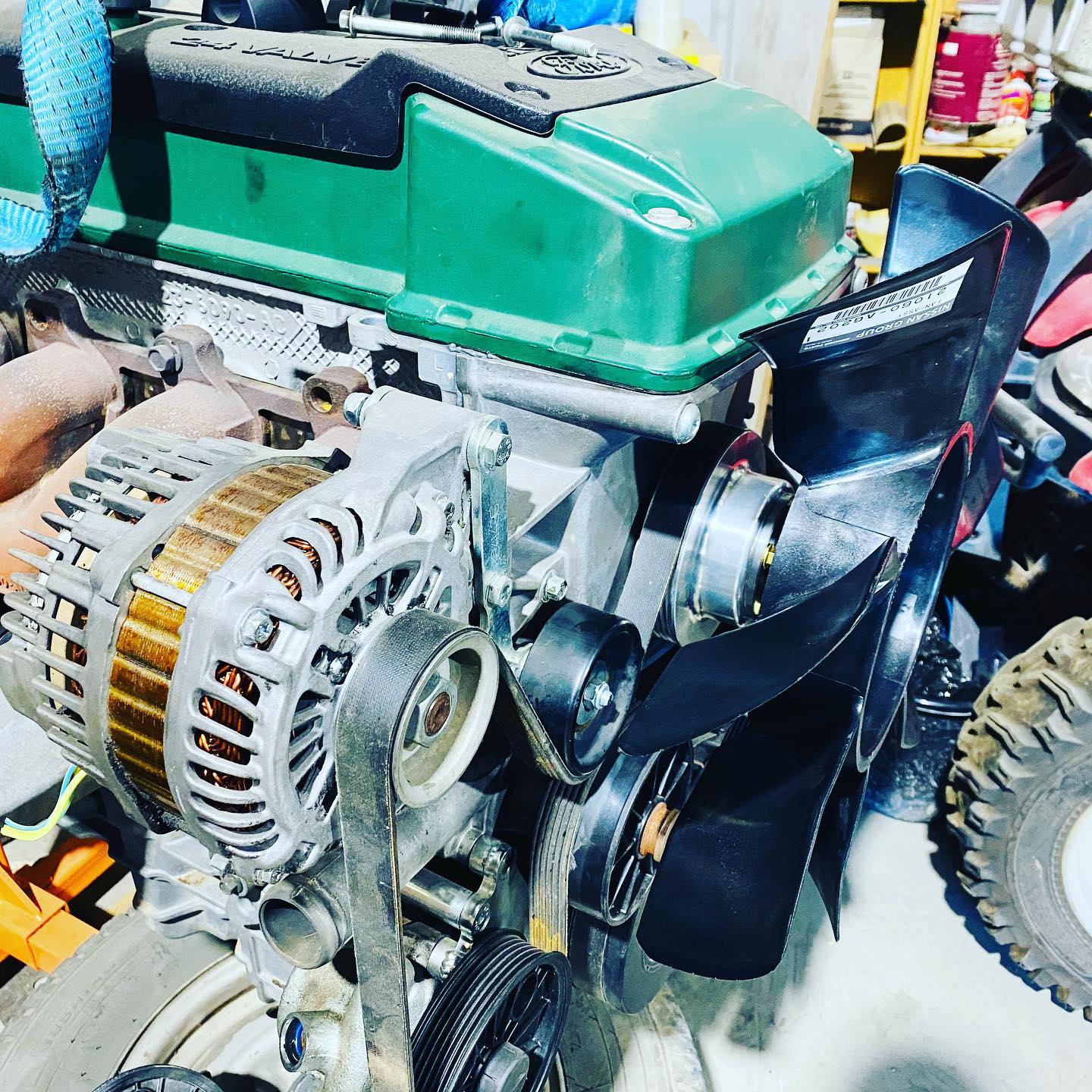

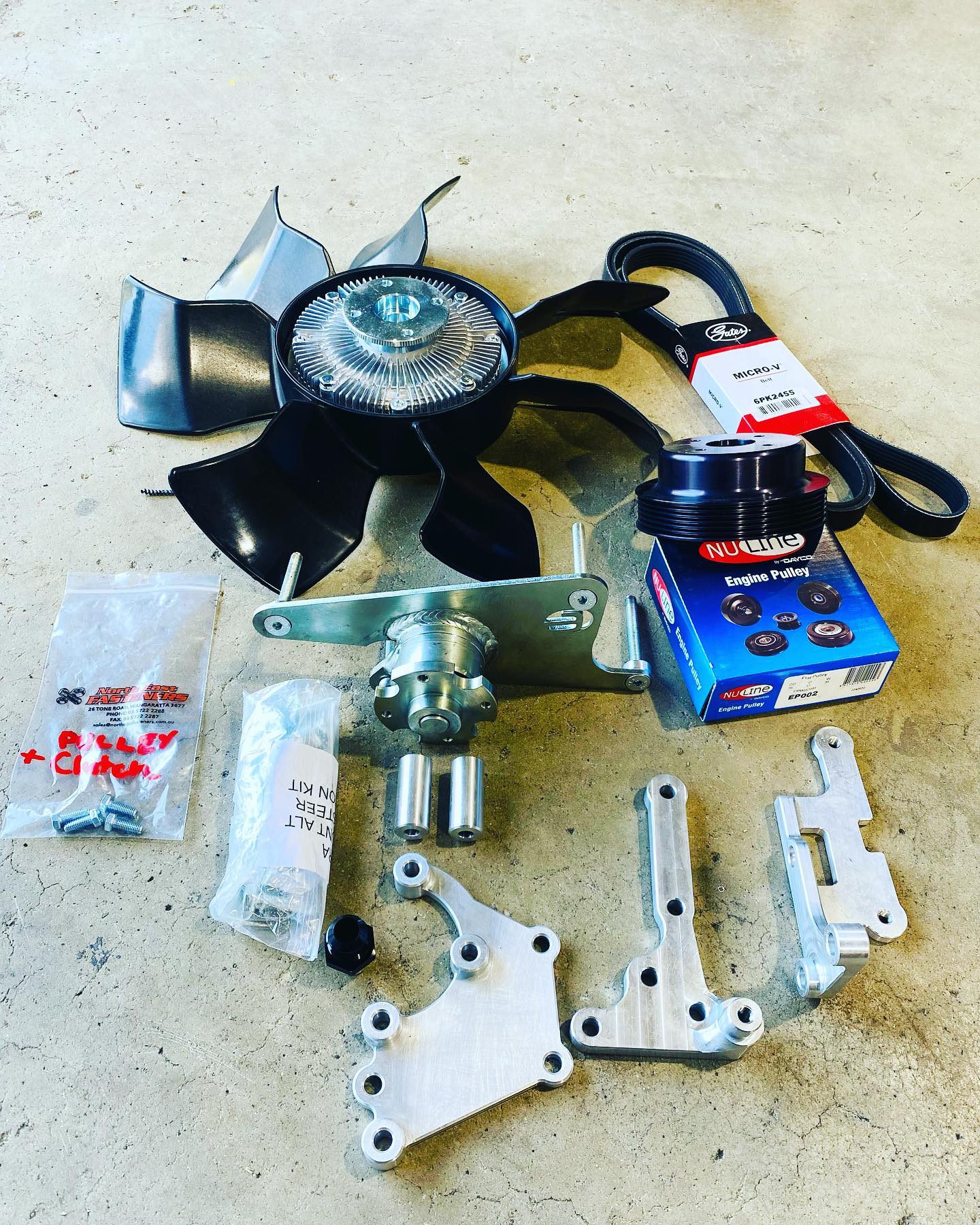

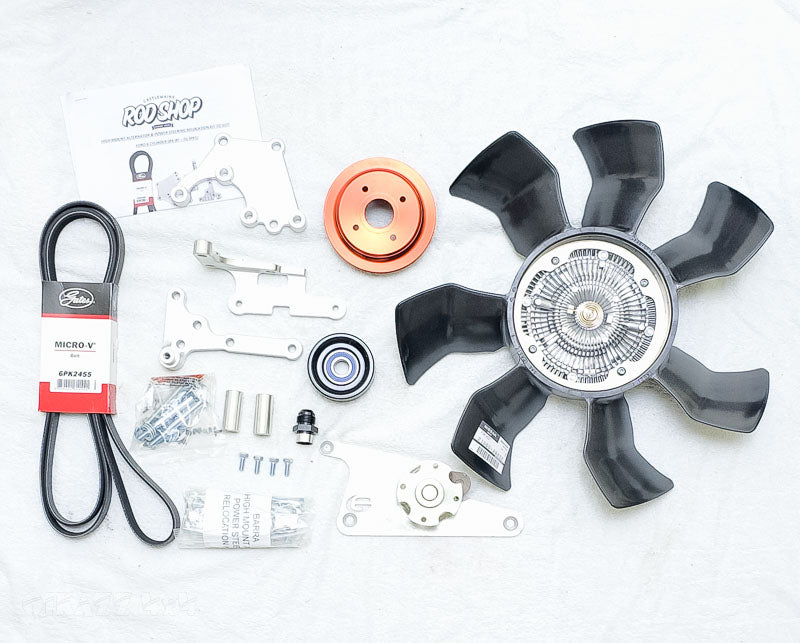

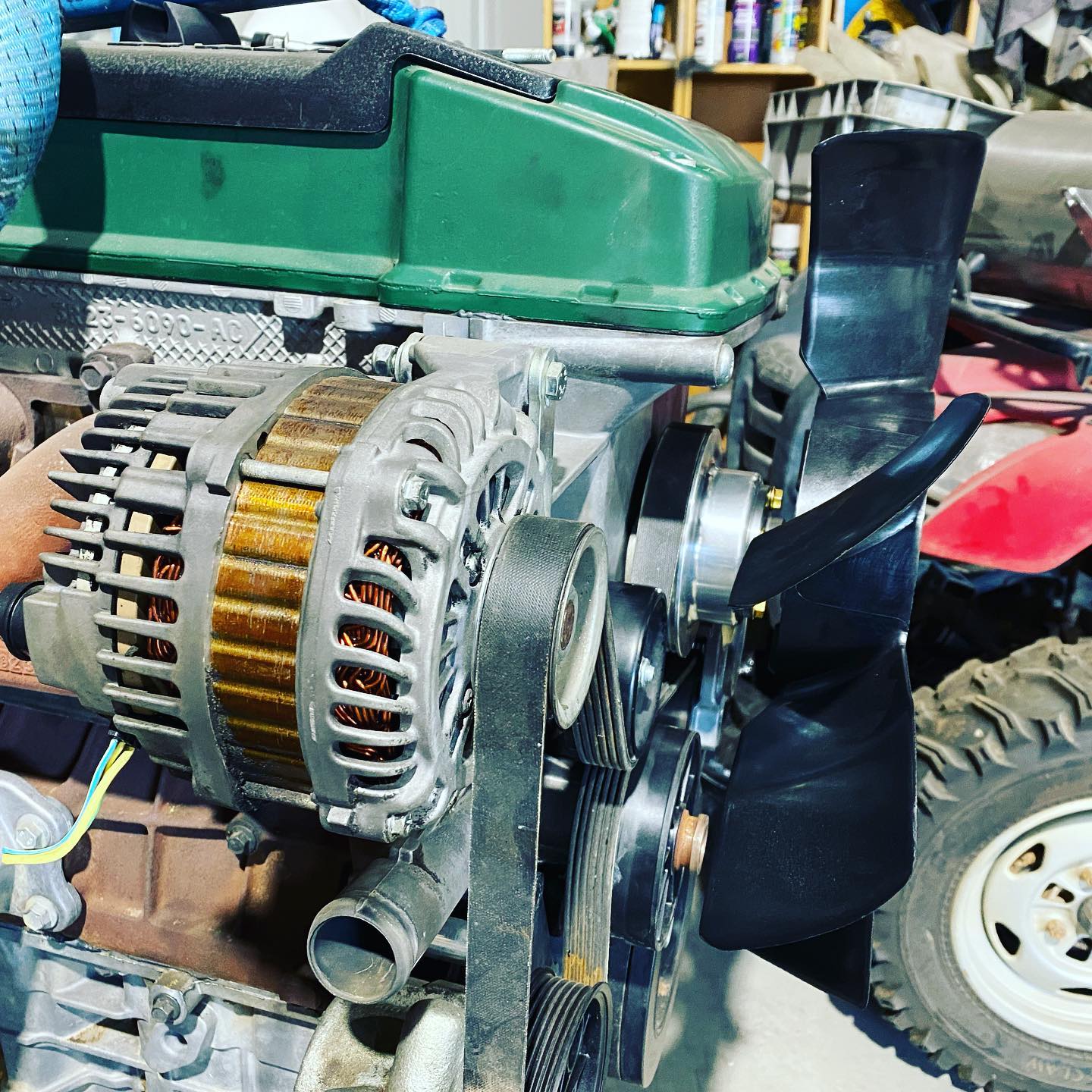

The long awaited Mighty Barra Clutch Fan kit has arrived...
We're the first company to successfully create and manufacture a kit that works and handles the abuse a Barra will hand out.
Why would you want to purchase a clutch fan kit for your Barra engine?
1. The cooling efficiency is far greater than a set of thermos even the best brand out there will not compete with our clutch fan setup, if you don't believe us, try it out for yourself.
2. Once you've installed your kit, you will have a high mount alternator as we relocate the power steering and alternator to get the correct amount of belt wrap for the billet fan pulley.
3. The fan mount is a specially made unit in-house at Eliteweld, comprising of a steel mount with 4 long bolts, fixing to the block with two bolts and another two mount through to the head, the middle bolt and mounting tab set the height of the mount directly off the machined boss on the timing cover ensuring you have the correct belt offset.
4. No more unreliable electric fans that don't allow you to feel confident when doing deep crossings.
5. The Mount for the fan hub runs a set of parallel roller bearings, that can be bought from any bearing shop and also cheap enough to carry a spare set in case the time ever comes to replace them, you wont be caught of guard.
6. Your engine will run the coolest its ever run providing your engine doesn't have pre-existing dramas .
Cons.
1. Factory shroud may need trimming on passenger side, alternatively you can make a custom shroud.
2. May rob a few HP? assuming there will be enough to lose a tiny bit.
--------------------------------------------------------------------
We designed these primarily for the Nissan Patrol, but they will fit many other applications with custom shrouds and some simple measurements to see if the offset will suit your Application...
They're not designed to only work in 4wds either, they will work in any car with a barra providing you do your home work on clearance etc.
We have been developing these kits for 2.5 years and have been live testing them now for the last 1.5 years through some serious abuse with no fails so far.

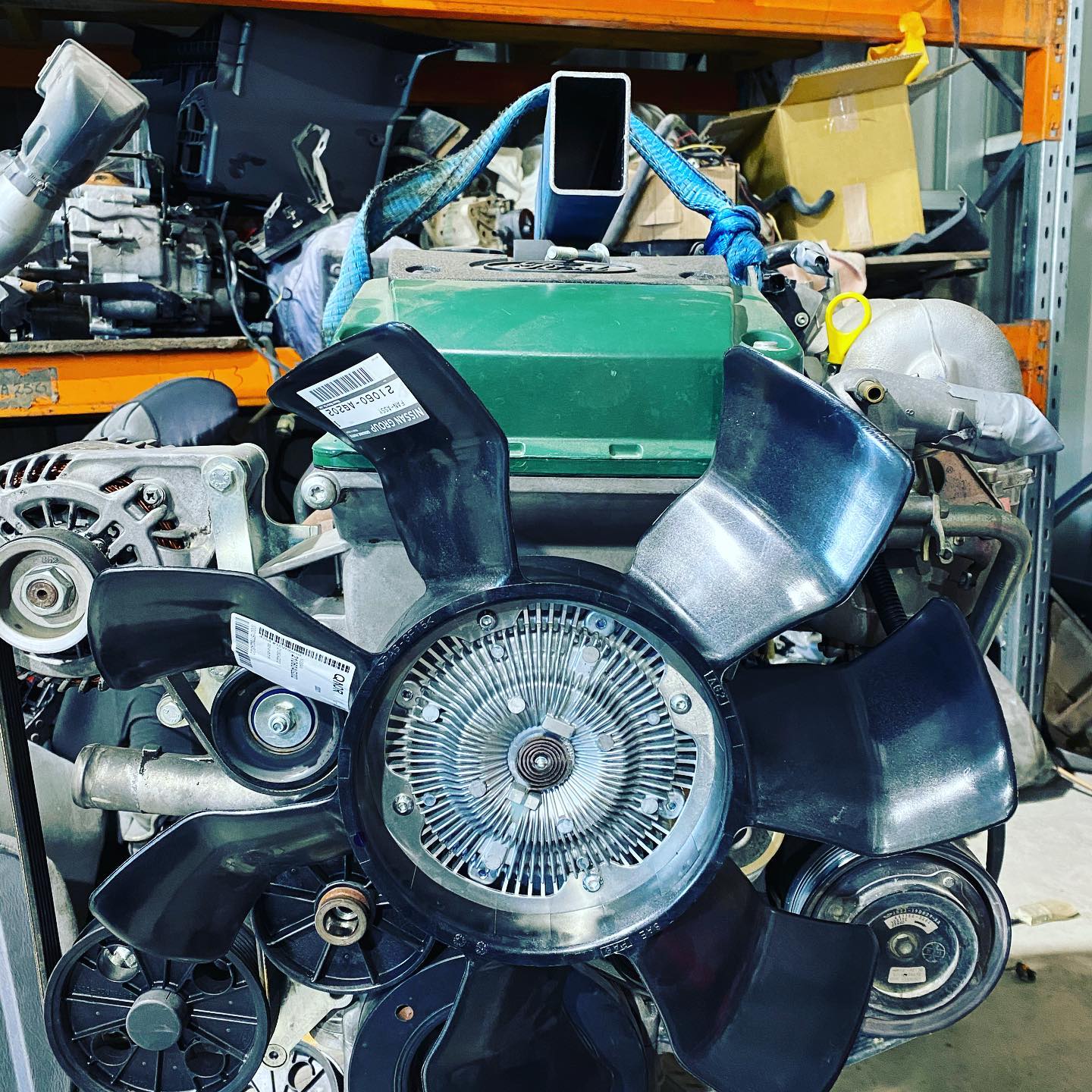

FAN BLADE LOCATION AND OFFSET
The front of the fan blade is approximately positioned 85mm from the furthest point of the rocker cover (fan blade offset)
The top of the fan blade is positioned 25mm under the top of the rocker cover.
All the steel parts have been electroplated in blue/silver zinc.
Billet Alloy Pulleys Are anodized in both Red Or Black.
Please leave a note in checkout on which colour you would prefer.
