Description

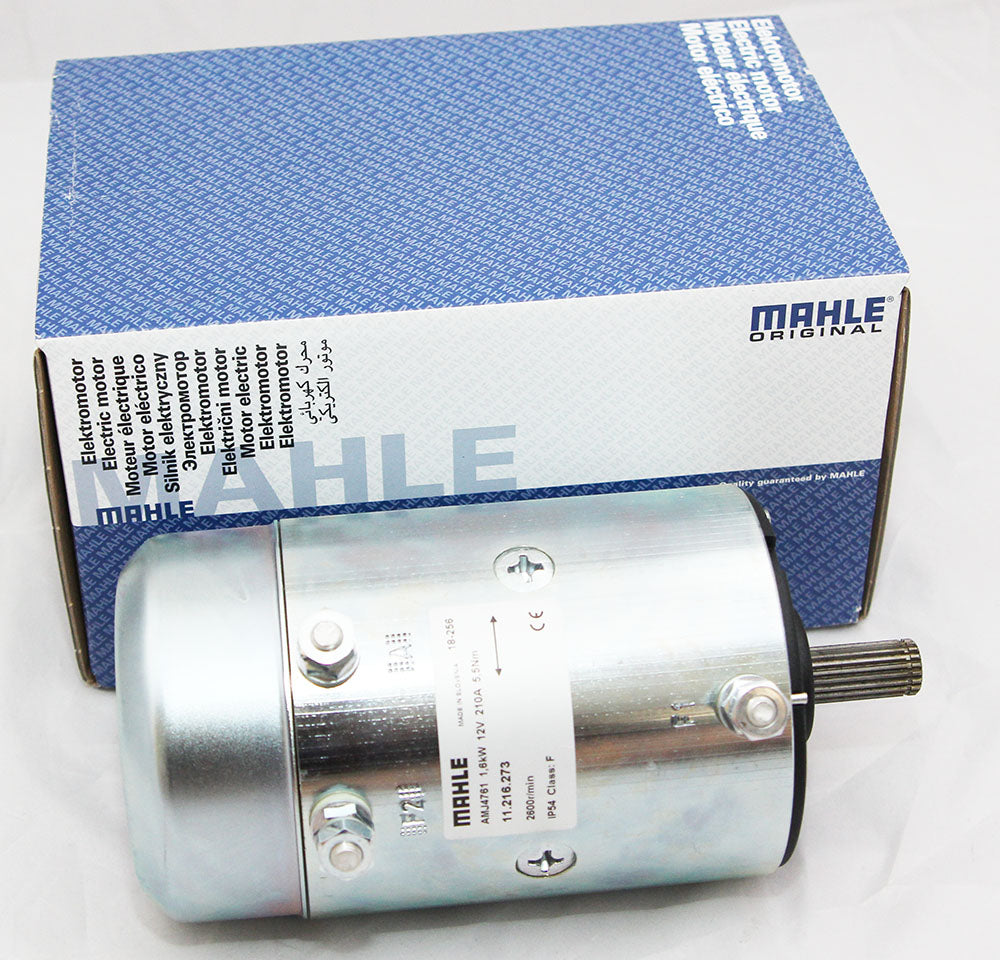

Iskra MAHLE Winch Motor
These winch motors have been making a name for themselves on the comp scene over the last few years and they made their presence felt at Ironman 4x4 Adventure Challenge being fitted to 4 out of 10 cars.
They are making themselves at home on winchtruck & super tourers around Australia with competition vehicles running them in QLD, NSW, WA & VIC events.
They are a direct replacement for Warn 4.6 & 6hp & Bow2 motors. They have also proved themselves reliable when overvolting (running on 24V) so if performance & reliability matter then these are the winch motors for you. These motors have an IP44 rating
A bit of history about Iskra, in 2012, the Slovenian auto electrical company Iskra Avtoelektrika changed its brand name to Letrika. There continuous product development earned the recognition of the profession. Letrika is a member of the MAHLE group since 2014 and use MAHLE Letrika brand name since 2015 and are now branded MAHLE.
MAHLE is a world leader in automotive components and are supply original equipment to many of the world’s leading car manufactures
| Specifications | |
| Voltage | 12V |
| Kilowatt | 1.6kW |
| Rotation from D/End | CW/CCW |
| C-C Mounts | 90mm |
| Mount Flange Diameter | |
| Case Mount ID | 98mm |
| Case OD | 112mm |
| Overall Length | 227mm |
| Case to End Shaft | 60mm |
| Shaft Outer Diameter | 15mm |
| Shaft Type | MALE 20 SPLINE |
| RPM | 2800 |
| Electrical Configuration | F2/F1/A |
| Ground | NEGATIVE |
| Operation Time | F1/F2/A |
| Weight (Kg) | 6.7kg |
