Description
See your next adventure unfold with Renogy E.FLEX 220W portable solar panels. Ergonomic handles make these foldable panels easy to take with you when you’re on the go! They’re powered with PERC monocrystalline solar cells that boost conversion efficiency to 22%. E.FLEX 220W solar panels are super durable and scratch resistant with ETFE film and rugged corner guards – they last 3 times longer than panels made with PET. With IP67 waterproof rating and rugged corner guards, E.FLEX solar panel can deliver plenty of reliable power in the most demanding weather conditions. They’ll charge your portable power stations and batteries wherever your journey takes you.
Solar connectors and charge controllers may be required. Sold separately.
Key Features

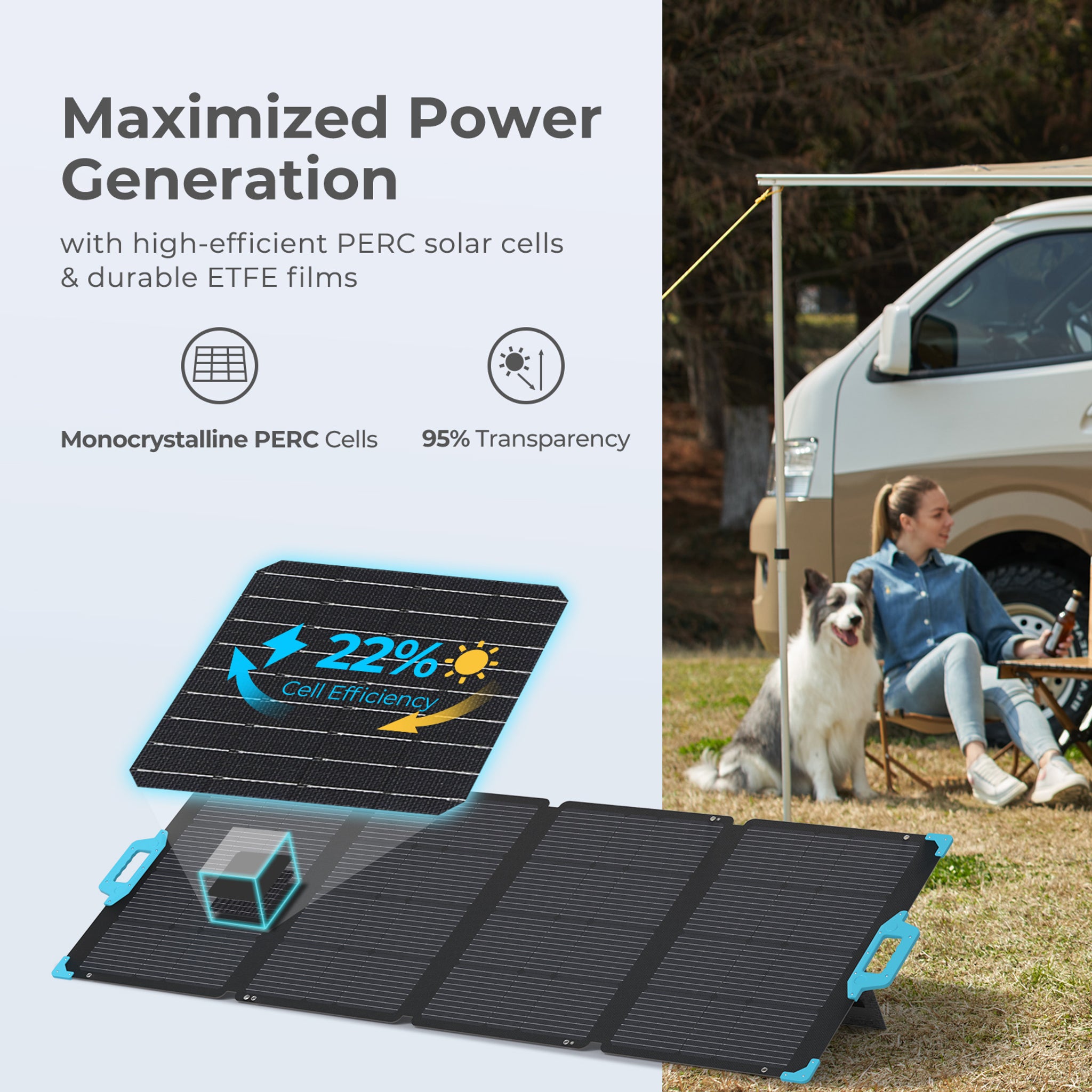

Efficiency Meets Durability- PERC monocrystalline solar cells deliver a 22% efficiency rating, generating more power in a smaller frame than polycrystalline panels. The ETFE film coating further boosts the power output with up to 95% light transparency and reduces the risks of microcraks & deterioration, giving E.FLEX 220W solar panels a lifespan of over 10 years compared with PET-coated solar panels.
- Capture more sunlight with adjustable support legs that provide a wide range of tilt angles. Adjustable tilt means you get up to 30 percent more power generation than panels lying flat on the ground. With E.Flex you can charge deep-cycle batteries and portable power stations with confidence.
- Robust corner guards and ETFE film protect E.FLEX 220W Portable Solar Panels (IP67-rated) against splashes, dirt, and scratching that can impact power generation. Easy-to-grip handles and a pack-and-go storage case mean you're ready whenever adventure calls.
- Plug-and-play solar connectors make E.FLEX 220W portable solar panels the perfect addition to portable solar generators PHOENIX 500 and PHOENIX 1000. It can also be connected to solar charge controllers to charge deep-cycle batteries.(The solar connectors and charge controllers are sold separately.)
Package Includes
|
E.FLEX 120 portable solar panel 1 x
|
Specification
| Specifications | |
|---|---|
| Max Power at STC: 220W | Open Circuit Voltage (Voc): 26.8V |
| Short Circuit Current (Isc): 10.2A | Opitmum Operating Voltage (Vmp): 22.7V |
| Optimum Operating Current (Imp): 9.1A | Operating Temperature: '-4°F to 149°F / -20°C to 65°C |
| Dimensions:29.1 x 22.9 x 1.6in / 738 x 581 x 40mm (folded) 29.1 x 84.1 x 0.2in / 738 x 2135 x 4mm (unfolded) |
Weight:20.4lb / 9.23kg |
| Panel Leads (Pair):2.5mm2 / 39.37in |
Warranty Information
| Panels |
Material and workmanship warranty: 1 year |
Certification
 |
Downloads
 |
 |
