Runva 13XP Premium 12V with Synthetic Rope

Save $18.00
RunvaSKU: R13XP

Price:
Sale price$635.00 Regular price$653.00

Description

  • 13,000LB LINE PULL CAPACITY
  • IP67 INGRESS PROTECTED
  • RATCHET BRAKE IN GEARBOX
  • AVAILABLE IN 12V AND 24V
  • PERFECT FOR LARGE VEHICLES INCLUDING DODGE RAM, FORD F150/250/350
  • STEEL CABLE OPTION AVAILABLE
  • AIR FREESPOOL CLUTCH AVAILABLE

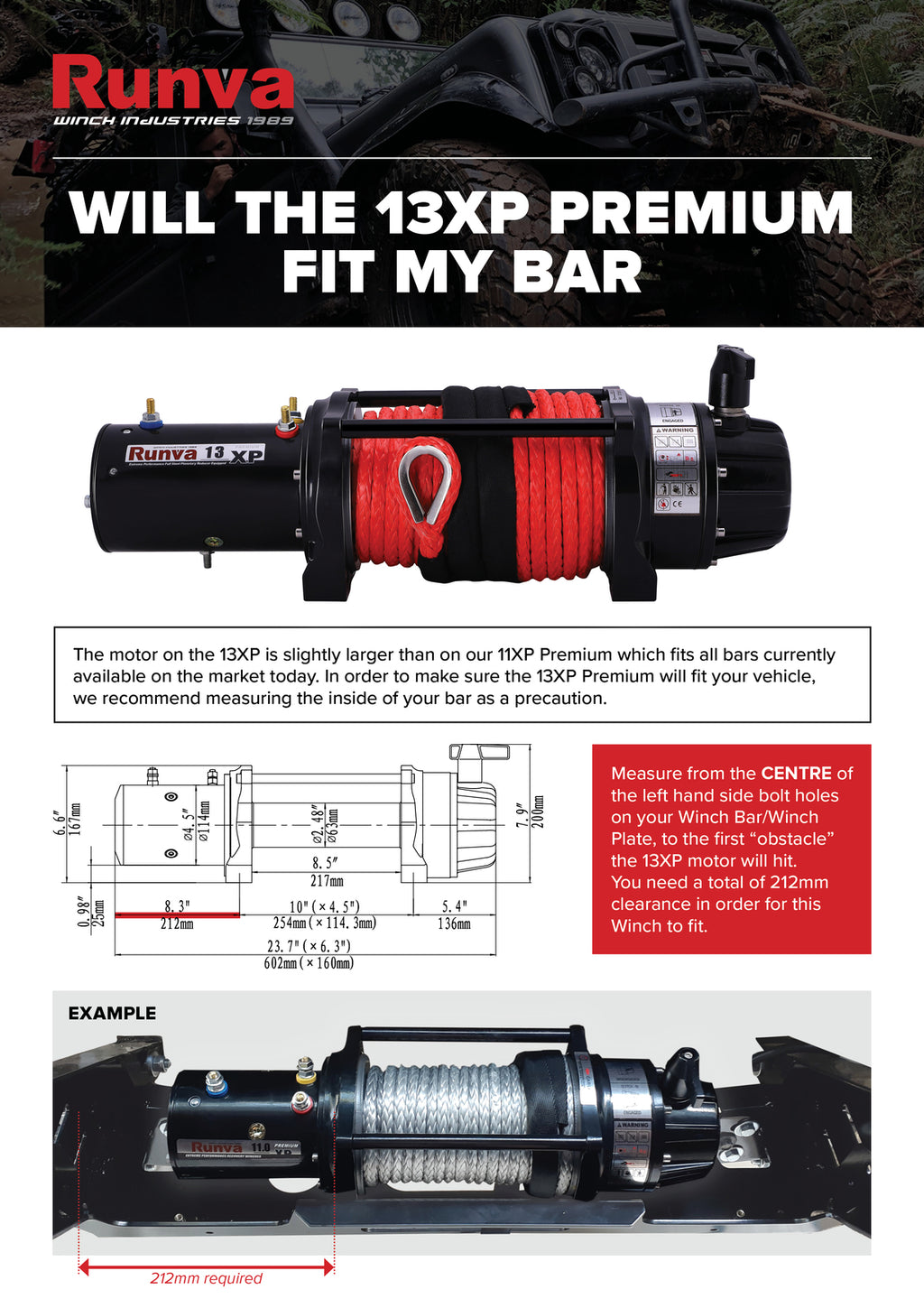

The Runva 13XP Premium is a very popular option, and is perfect for large heavy vehicles. Featuring a massive 13,000lb of line pull from the powerful and reliable 7.6HP motor. The gearbox is a three stage planetary setup with tough 228:1 gear ratio to handle the heaviest of recoveries. This model is the ideal choice for loaded up Landcruiser 79 Series all the way through to the American Dodge Ram, Tundra, F150 or anything else that requires some serious winch power. (The Runva 13XP Premium is also compatible with a variety of other vehicles. This winch is quite large so check out our technical drawing below to ensure fitment on your application)

This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.

The clutch is easily engaged/disengaged via the Rotary Clutch system. The 13XP Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control.


RATED LINE PULL13,000LB (5,897KG)
MOTOR(12V) 5.6KW/7.6HP; (24V) 6.5KW/8.8HP
GEAR TRAINFULL STEEL 3 STAGE PLANETARY
GEAR RATIO228:1
CLUTCH TYPESTAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITIONGEARBOX CAN BE ROTATED
BRAKEAUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPESYNTHETIC ROPE
CABLE SIZE11MM X 25M (25,250LB RATING)
DRUM SIZE63MM X 217MM
MOUNTING BOLT PATTERN254MM X 114.3MM
OVERALL DIMENSIONS602MM X 160MM X 200MM
REMOTE CONTROLHEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS2X 1.8M HEAVY DUTY LEADS
FINISHBLACK POWDER COAT
WARRANTYLIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
SKU 13XPPREMIUM12VD
SHIPPING WEIGHT 41.00KG
SHIPPING WIDTH 0.330M
SHIPPING HEIGHT 0.330M
SHIPPING LENGTH 0.635M
