Stedi LED Fog with DRL Upgrade for ARB Deluxe Bullbar

Save $5.00
StediSKU: LEDCONV-FOGARB- 1

Price:
Sale price$111.00 Regular price$116.00

Description

!!! FREE FREIGHT !!!

Description

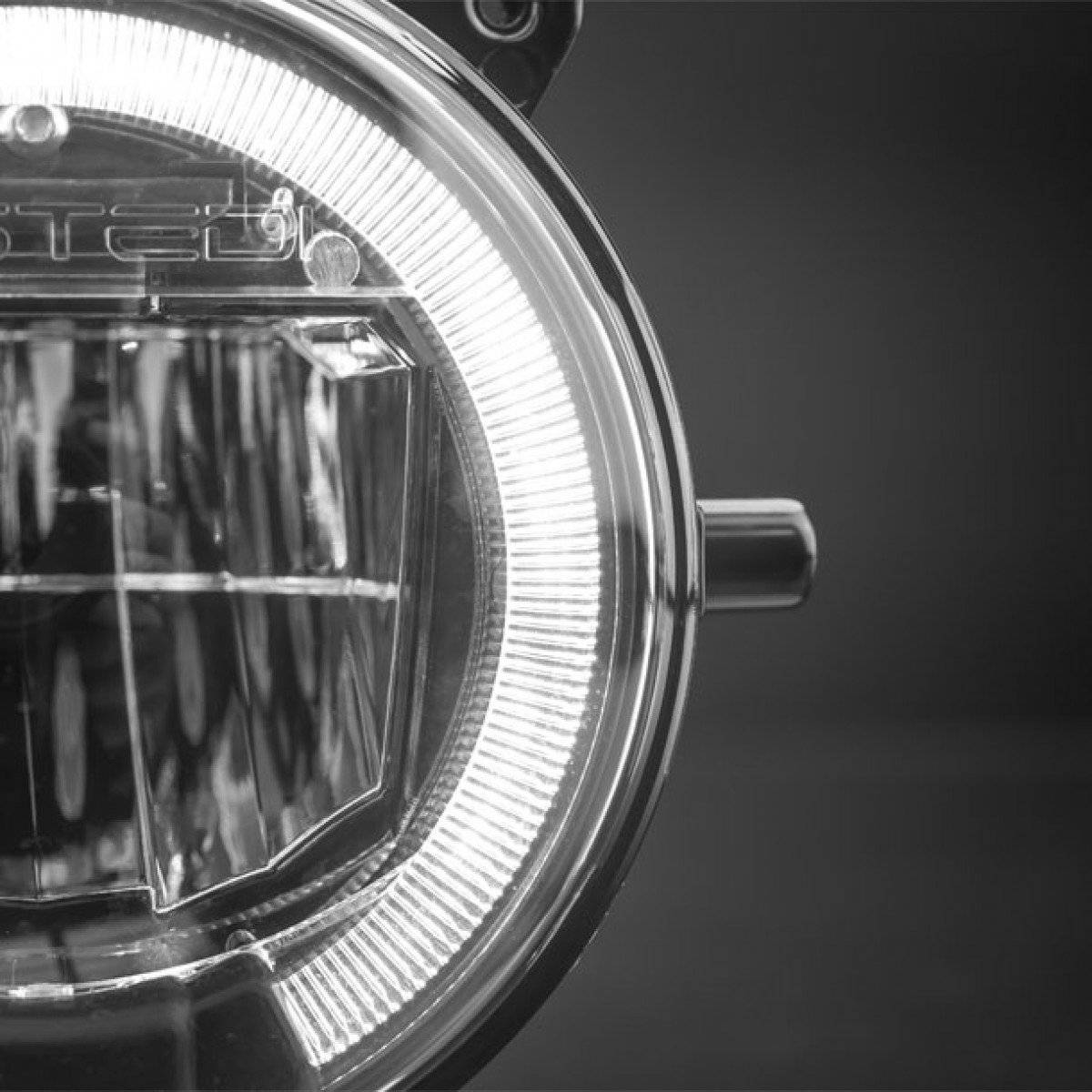

You asked for it, so we made it. The ultimate upgrade to suits the ARB Deluxe Bull bars. This is an easy drop in solution to your existing ARB fog light housing and will transform the little yellow puddles of lights to a high performance 5700K LED, with built in Day Time Running Light function. Our optics retain a very sharp lateral beam making these an excellent upgrade to penetrate below fog. Fog has a tendency to slightly hover above the tarmac and the idea behind the sharp lateral cut line is that the beam pushes underneath the fog to provide usable illumination, with a very wide coverage.

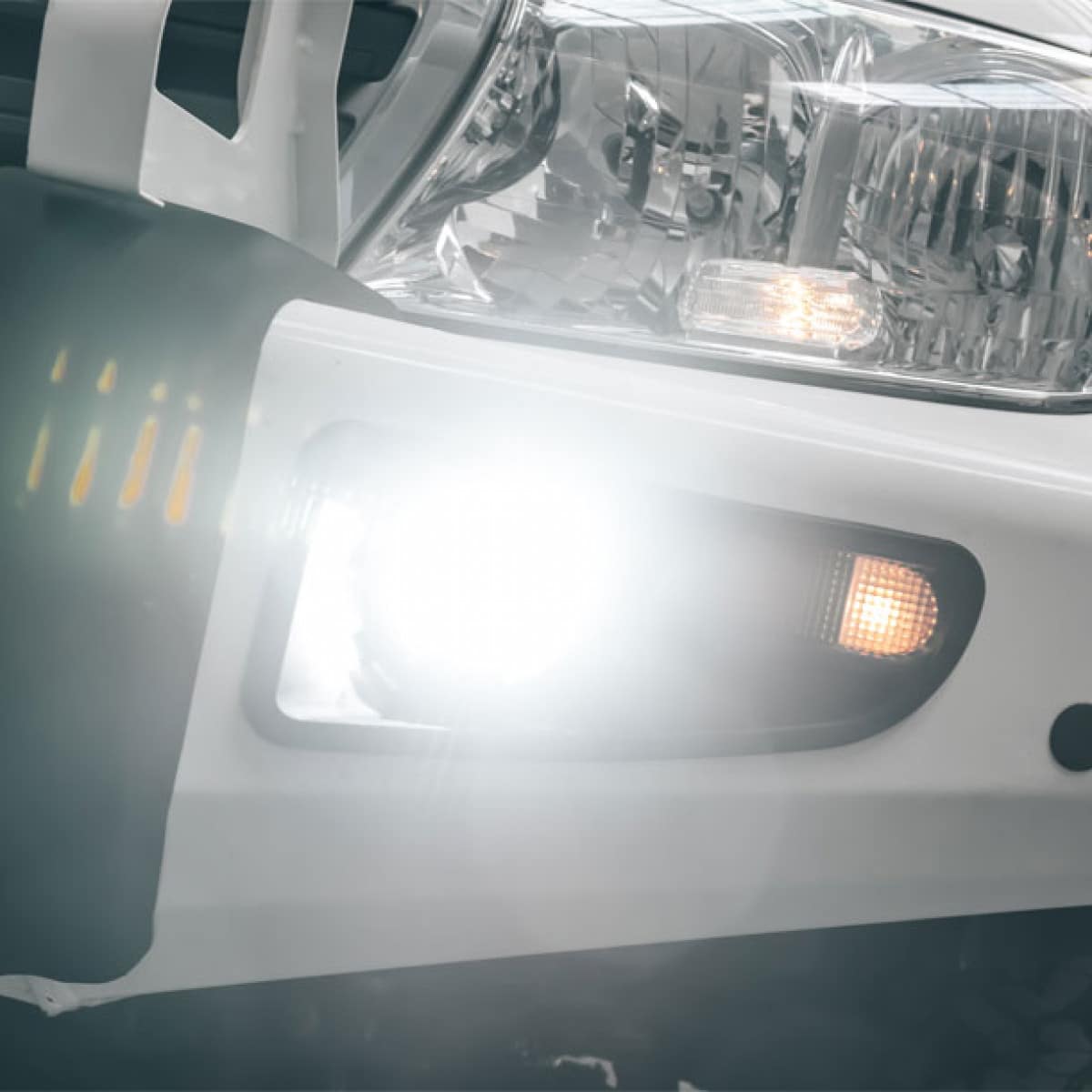

Factory Fit LED Fog Light

With DRL Function

Night

Temp

DETAILS

KEY TECHNICAL DETAILS

  • UV Stable automotive grade Poly-carb primary Lens | Unlike the OE ours lens wont break!

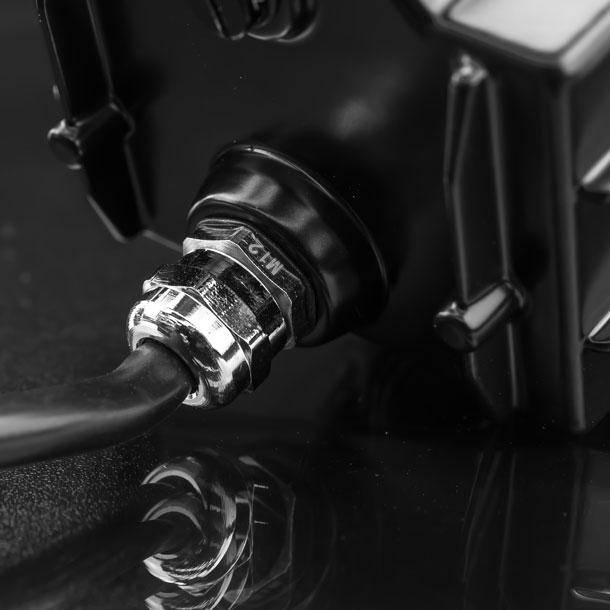

  • Environmentally sealed automotive connectors
  • Uses the same terminals as original ARB fog light for easy installation.

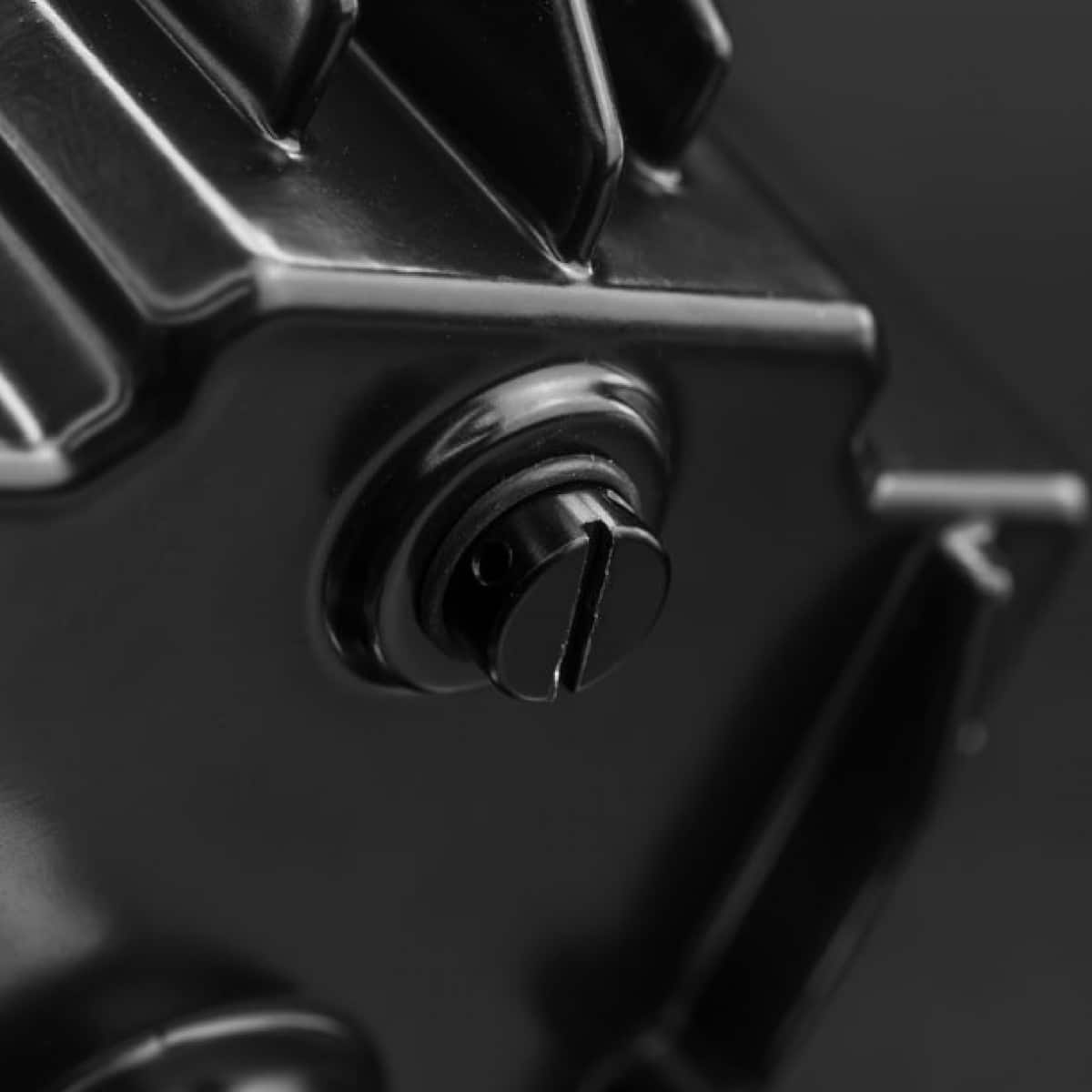

  • Military Spec Pressure Equalisation Vent | Eliminates condensation
  • IP67 Ingress Protection | Protected from immersion between 15 centimeters and 1 meter in depth for 10min at a time.
  • 50,000 hours Lifespan
  • 24 month Warranty
  • 5700K to ensure a CCT match to other STEDI LED products

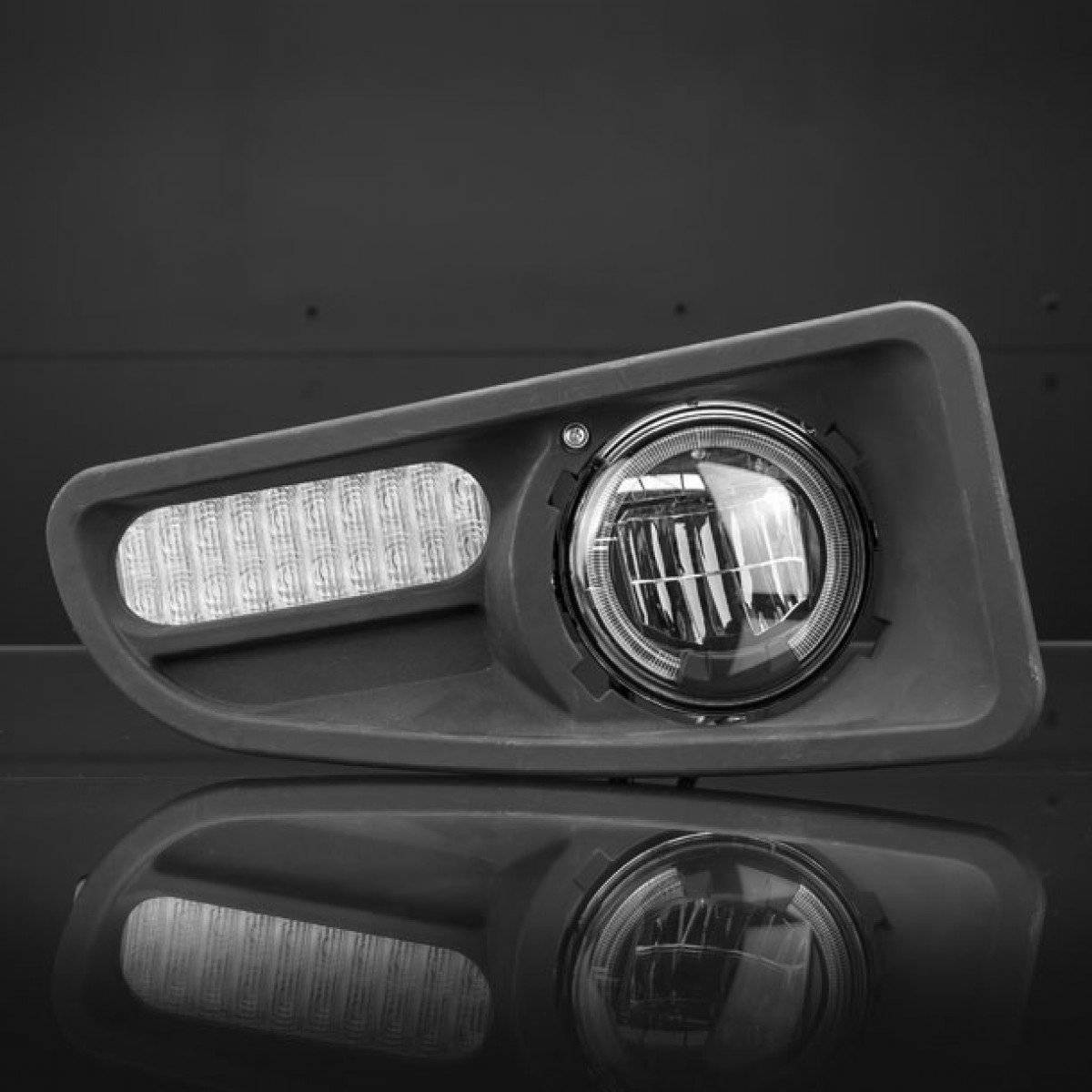

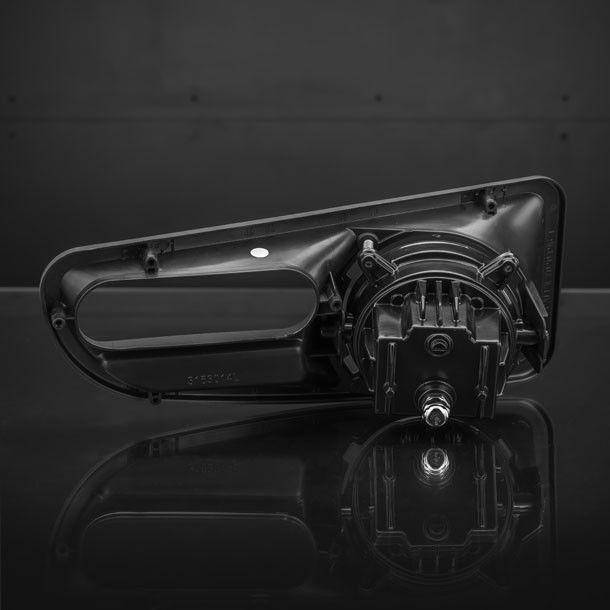

Price quoted is for a pair (ARB Fog Light Shroud shown is not included)

Fits ARB Fog Light Kit Part No: 6821201. If you're unsure whether your ARB bullbar is eligible feel free to get in touch with us for advice.

 Once installed we recommend that the beam is adjusted to ensure that it cuts off no higher than 50cm from the ground, with the car 25m away from a wall.

Please note that this LED upgrade will not suit vehicle which have the IPF upgraded fog light housing and kit. If your fog light lens has the IPF logo embossed on it, this upgrade will not suit.

STEDI Designed & Manufactured.

This product is not endorsed by, directly affiliated with ARB. All product and company names are the registered trademarks of their original owners. The use of any trade name or trademark is for compatibility and reference purposes only and does not imply any association with the trademark holder of their product brand.

Specifications

HOUSING MATERIAL DIE-CAST ALLOY
COMPATIBLE VOLTAGE 12v to 15v
LIFESPAN 30,000 hours
TESTED LUMENS (FOG) 764 Lm
TESTED LUMENS (DRL) 35 Lm
CONNECTOR TYPE Sealed
CERTIFICATION IP67
DRL DRAW  0.2A @13.6V
FOG LIGHT DRAW .8A @ 13.6v
DIAMETER 103mm



What's in the box

What’s in the box

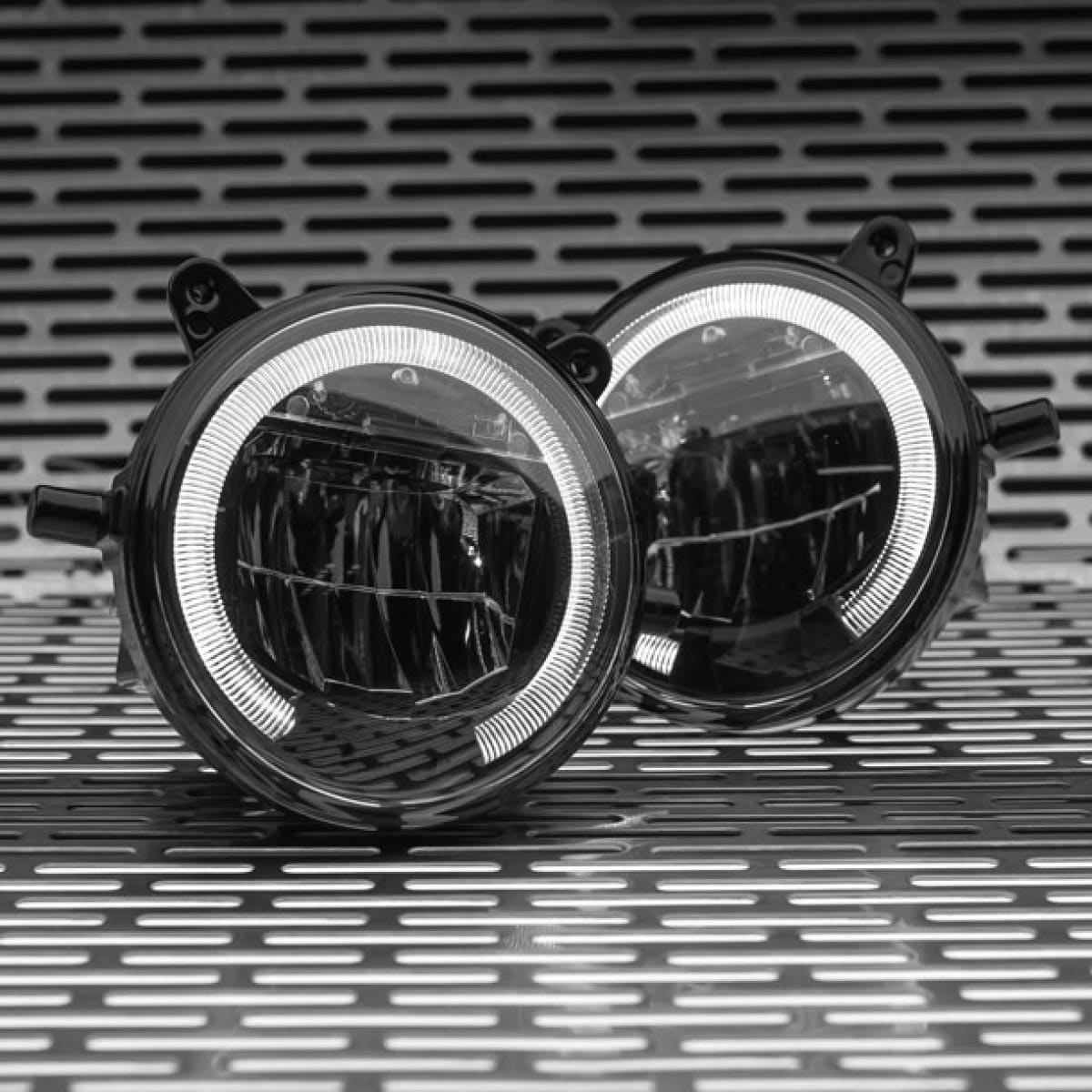

  • 2 x STEDI ARB Replacement LED Fog Lights
  • Connectors and Wire

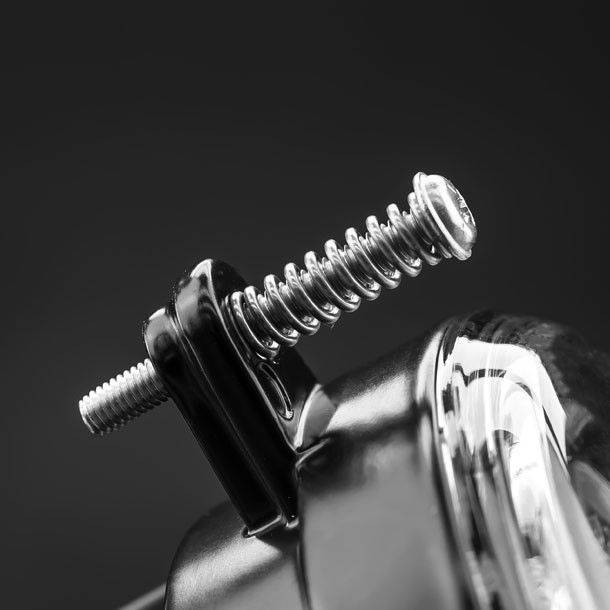

  • 2 x Tilt Adjustments Spring and Screws
