Description
!!! FREE FREIGHT !!!
UNIVERSAL HOUSING SOLUTION.
If you're looking for an OEM-like LED upgrade, look no further down our Type C fog light which has mounting brackets to suit a wide range of factory fog lamp housing.
UTMOST COMPLIANCE.

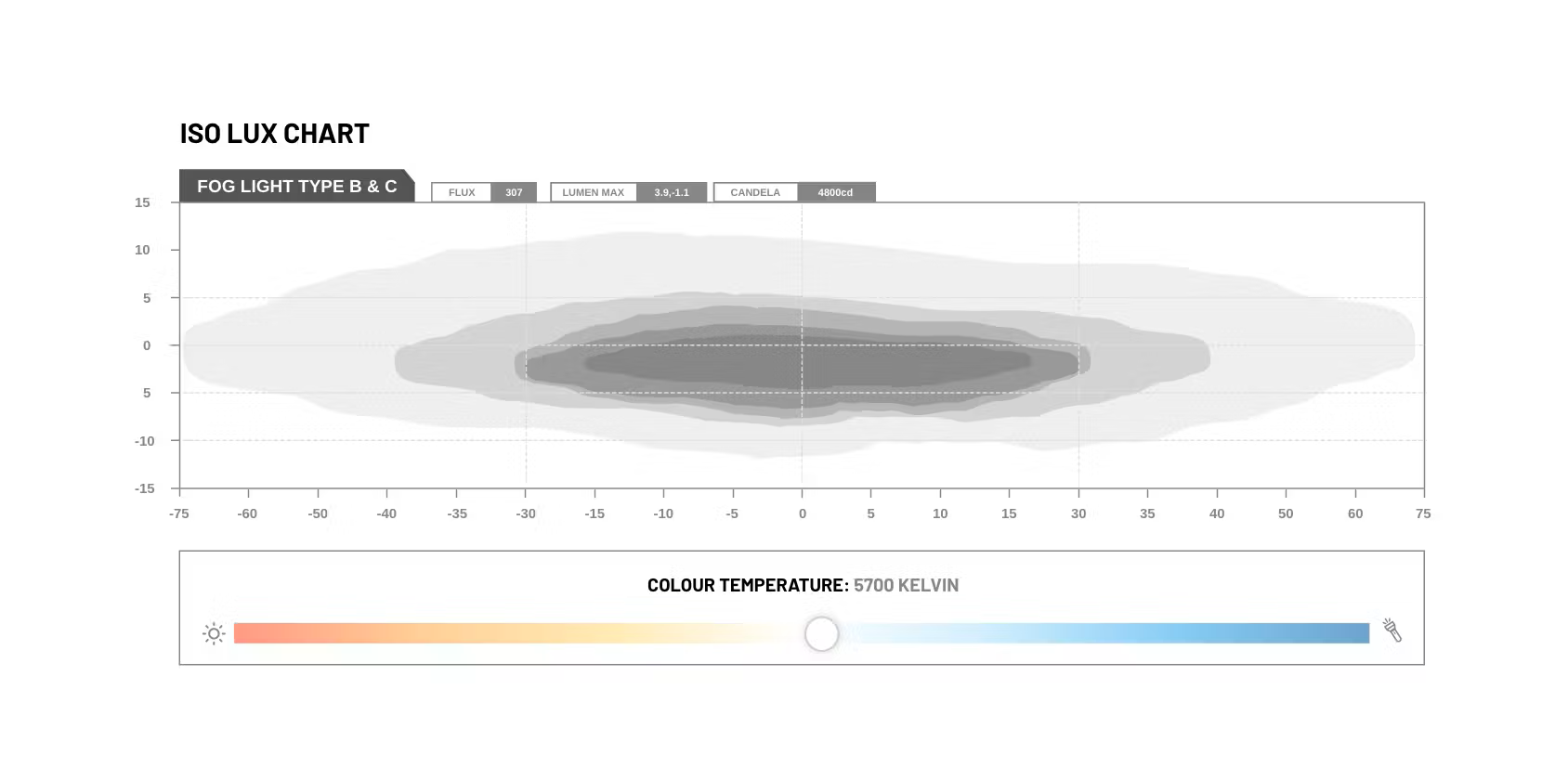

The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.
BULL BAR FRIENDLY.
These LED fog lights are a direct fit, using your factory mounting points in behind the standard front bumper, and some aftermarket bull bars which you can view here.
The nitty
gritty.
KEY TECHNICAL DETAILS
These LED fog lights are a direct fit which uses your factory mounting points in behind the standard front bumper, and some aftermarket bull bars listed below.
The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.
Once installed we recommend that the beam is adjusted to ensure that it cuts off no higher than 50cm from the ground, with the car 25m away from a wall.
Please check below for a full list of compatible vehicles.
BULL BARS
- TJM: T13 Bull Bars with halogen fog lights T13
- Rhino 4x4: Bull Bars
Tech Specs
OEM PART NO#
OE No.: 81210-0W050, 81220-0W040
OE No.: 81210-0W070, 81220-0W070
| HOUSING MATERIAL | Alloy Heat Sink |
| LED | High Performance Luxeon T LED |
| LUMEN | 960LM (per light) |
| COMPATIBLE VOLTAGE | 12v and 24v |
| LIFESPAN | 50,000hours |

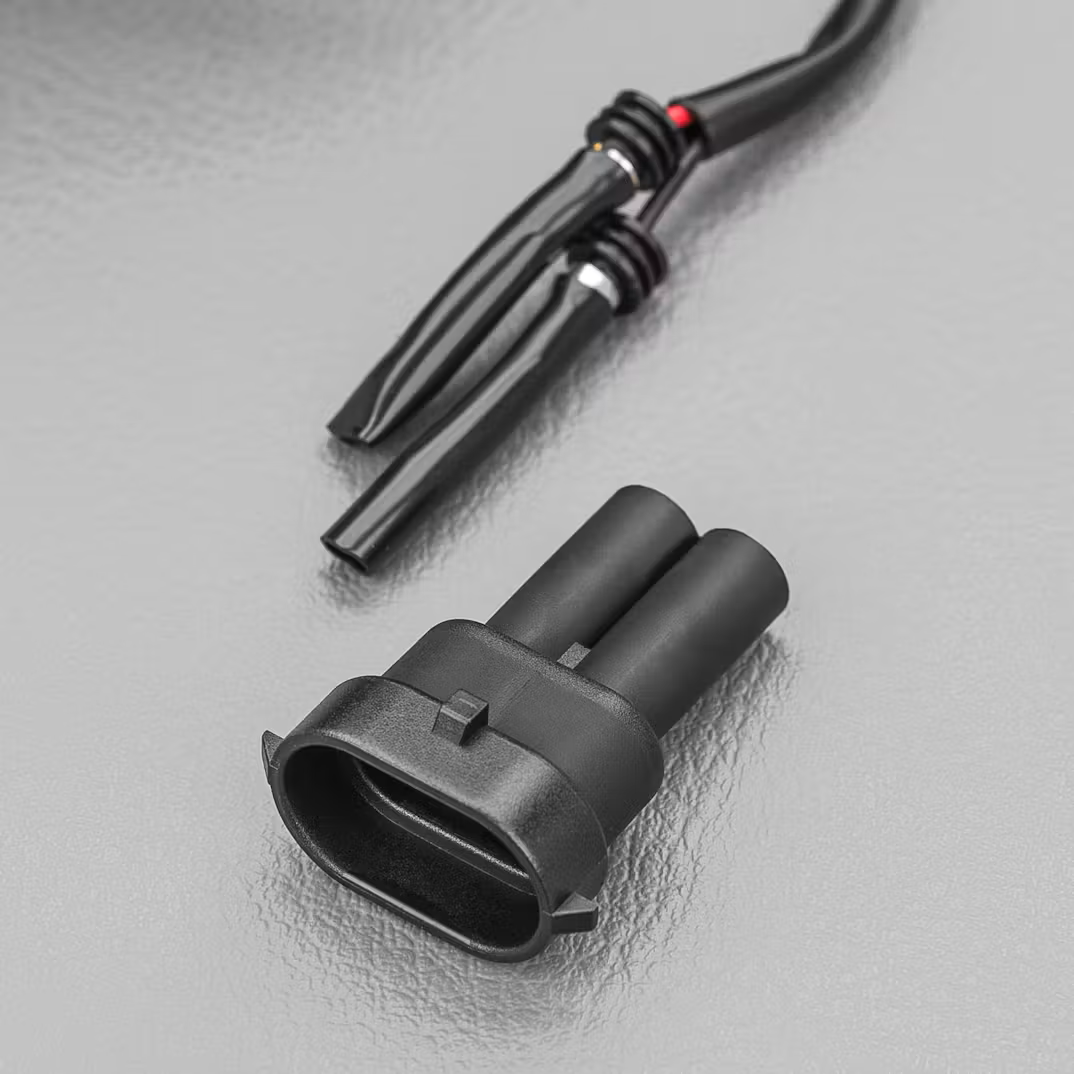

| CONNECTOR TYPE | Sealed |

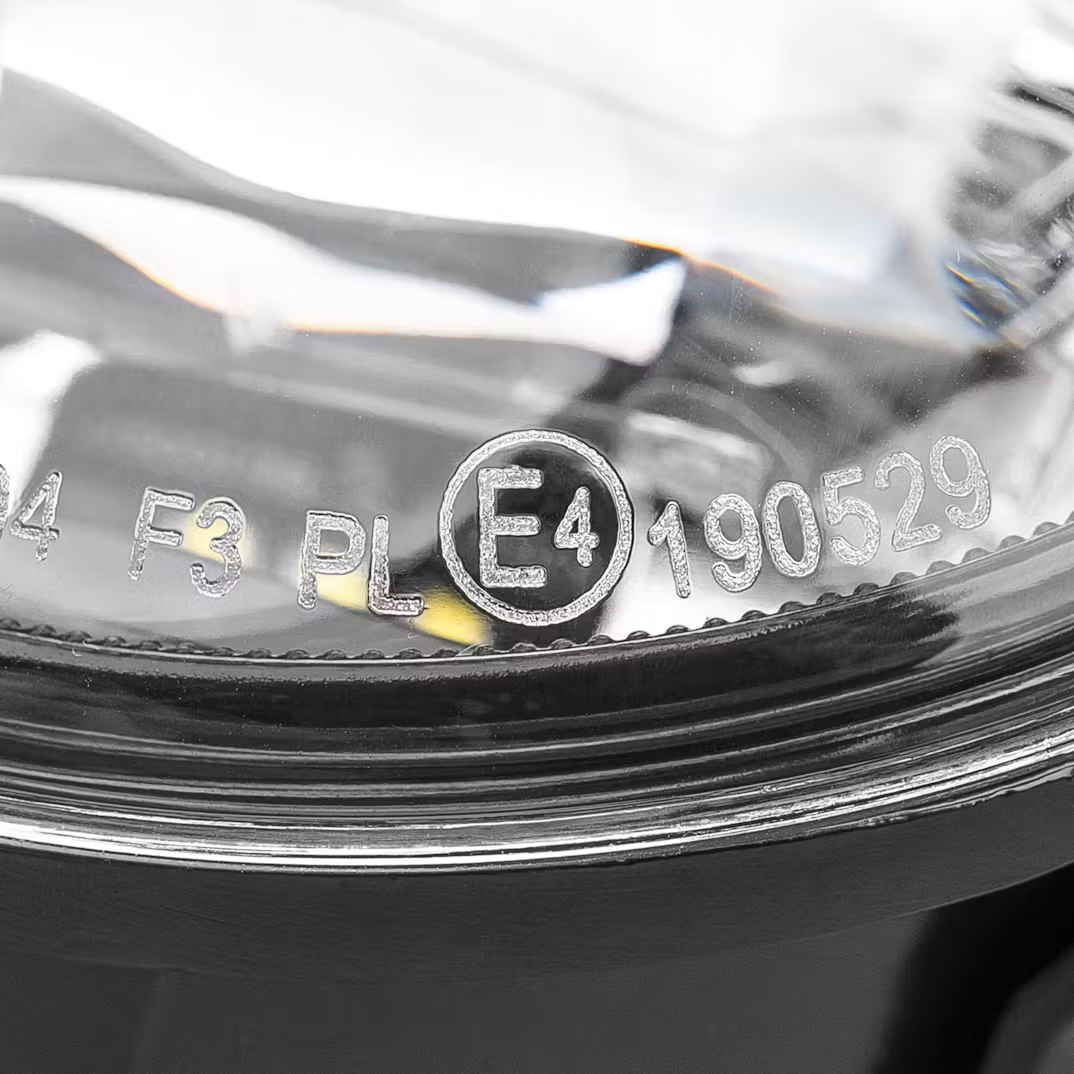

| CERTIFICATION | CE, E4, RoHs, R87, IP67 |
| FOG LIGHT DRAW | 0.5a @ 13.6v |

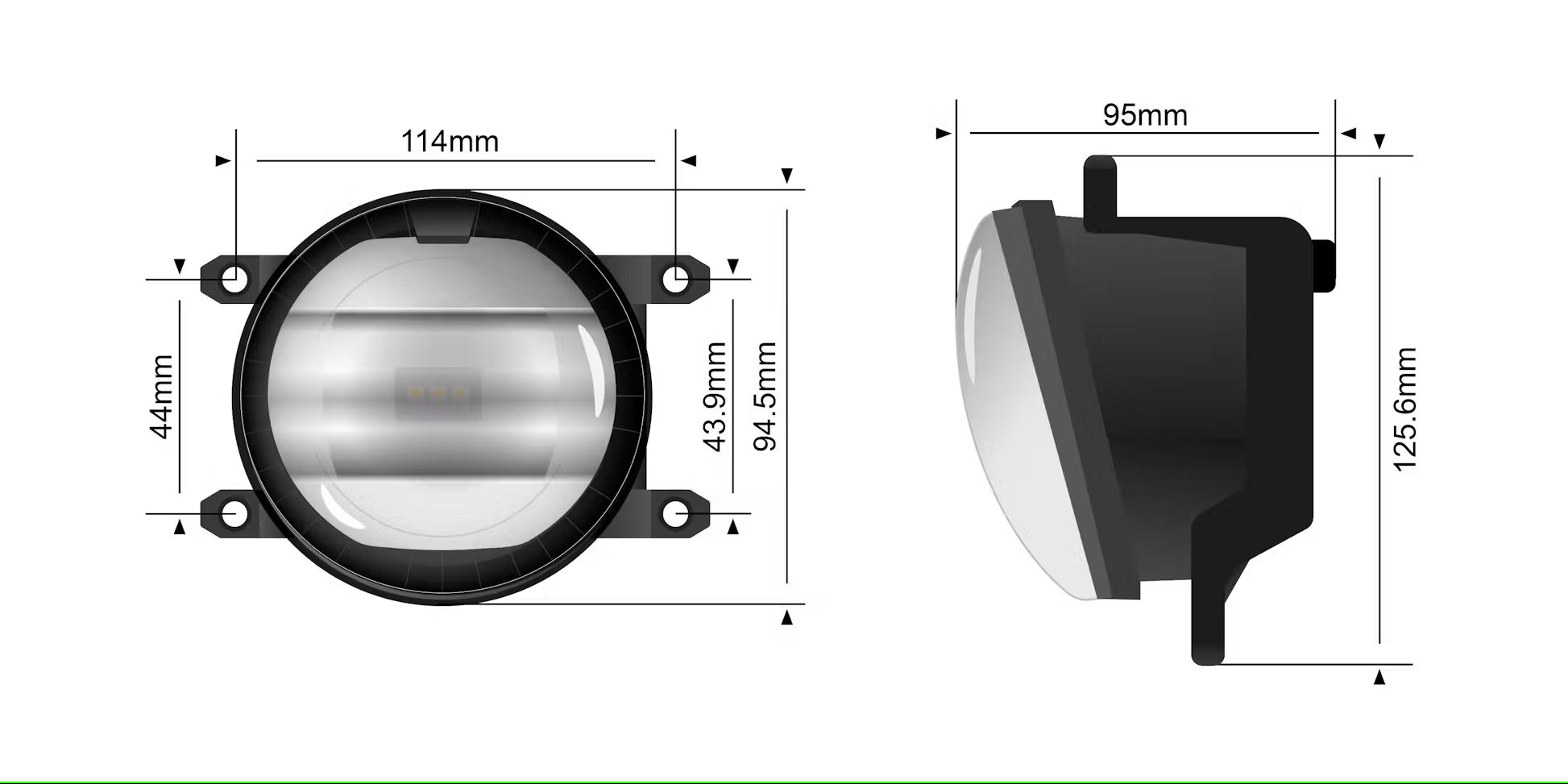

| DIAMETER | 90mm |
