Description

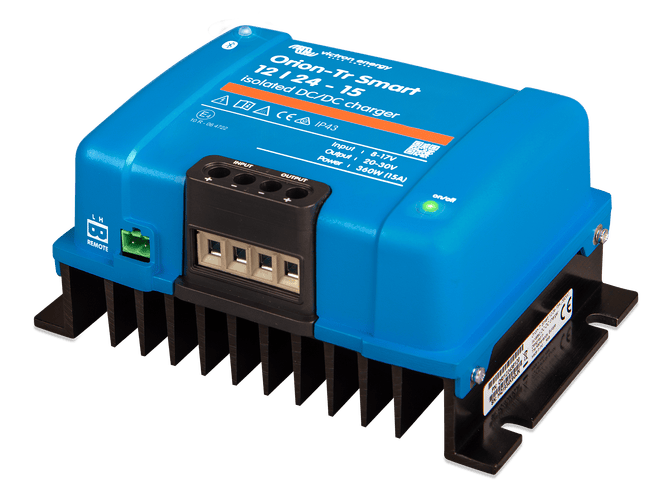

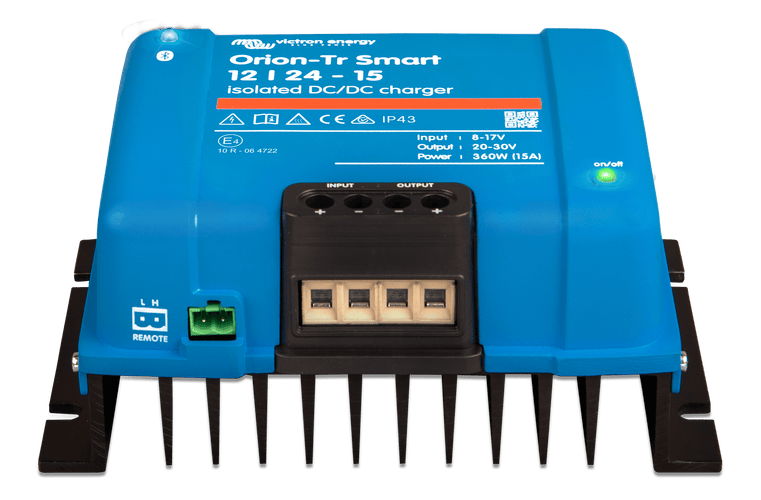

Smart Power Solution: Orion-Tr 12/24-15A Isolated DC-DC Charger
WARNING: This unit is specifically designed for 12V to 24V charging systems. Using it with other voltage systems may cause irreversible damage.
The Victron Orion-Tr Smart Isolated DC-DC Charger is your go-to for reliable, efficient, and smart charging. It's perfect for keeping your vehicle's battery, RV, marine, or off-grid storage system in peak condition, ensuring you have power when you need it most.
Effortless Connectivity with Bluetooth Smart
Stay in control and customize your charger settings with the convenience of Bluetooth technology. Use any Bluetooth-enabled smartphone or tablet to keep track of your charger's performance and make adjustments on the fly. With the latest software updates at your fingertips, your charger will always be up-to-date.
Customizable Charging for Every Need
- Adaptable charge settings allow you to tailor the charging process to your specific battery type and needs, whether you're looking to optimize battery life or need a quick boost.
- Compatibility with modern smart alternators makes this charger an ideal choice for newer vehicles, ensuring seamless integration and charging.
Intelligent Charging with a 3-Stage Algorithm
- The Orion Smart charger's bulk, absorption, and float stages adapt to your battery's needs, offering a fast charge when empty and preventing overcharging when full.
- The fixed output voltage mode is also available for devices that need a constant power supply.
Remote Control Options

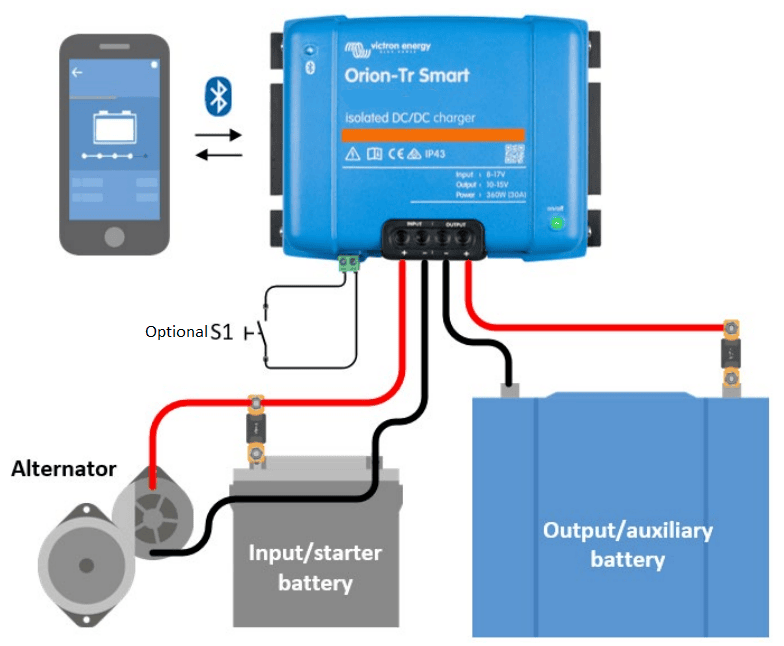

With the ability to connect a remote switch or relay, you have the flexibility to control the charger from afar, making it convenient for hard-to-reach installations or for integrating into complex systems.
Expandable Power for Larger Systems
Need more power? You can safely connect multiple units in parallel for increased current output, making it a scalable solution for larger energy demands.
Protection Against the Elements
With an IP43 protection rating when installed with the screw terminals facing downwards, the charger is protected against ingress of objects and spraying water, ensuring durability in various installation environments.
No-Hassle Installation
The user-friendly screw terminals mean no special tools are needed, simplifying the installation process. It’s a straightforward setup that’s as easy as it is robust.
Stay Safe with Built-In Features
Integrated safety features, including a non-replaceable input fuse and high-temperature protection, ensure your system is safeguarded against potential electrical issues.
Whether you're powering an off-grid DC installation, hitting the road in your RV, or sailing the seas, the Victron Orion-Tr Smart Charger delivers the power you need with the intelligence and safety you can trust.
