Maximize Off-Grid Power with the Victron 24V 16A Blue Smart IP22 Battery Charger
NOTE: The Victron IP22 Chargers do NOT come with cables to connect the charger to the battery. See the IP65 range of chargers if built-in cables are required.
Discover the advanced Blue Smart IP22 Charger, a powerhouse for off-grid energy solutions, recreational vehicle (RV) systems, and meticulous battery care. This intelligent charger is not merely a device but a dynamic power companion that customizes its approach to meet the unique demands of your battery setup.
Seamless Wireless Control and Real-Time Updates
Experience the convenience of Bluetooth integration that brings smart wireless monitoring to your fingertips. Effortlessly control and modify charger settings, and keep your system updated with the VictronConnect app—transforming your mobile device into a sophisticated energy management console.
Peak Efficiency for Eco-Friendly Power Management
Achieving up to 94% efficiency, the Blue Smart IP22 Charger stands out in energy conservation, significantly reducing heat production and lowering standby power draw to a mere 0.5 Watt. This efficiency translates into less waste and more savings, epitomizing eco-friendly charging practices.
Smart 6-Stage Charging Algorithm for Enhanced Battery Life
Equipped with a microprocessor and an 'adaptive' 6-stage charge algorithm, the charger provides meticulous care to extend battery lifespan. It tailors the charging cycle according to real-time usage—perfect for deep-cycle batteries in solar storage systems, RVs, and marine applications.
Proactive Storage Mode to Minimize Battery Deterioration
When idle, the innovative storage mode is activated to preserve battery integrity, minimizing the need for upkeep and protecting against the common pitfalls of disuse such as sulfation.
Universal Compatibility for Diverse Battery Technologies
From rugged lead-acid to advanced LiFePO₄ batteries, this charger is versatile. It offers predefined charging algorithms for most battery types and allows custom settings for specialized applications—ensuring that whatever your battery, it's charged correctly and safely.
Whisper-Quiet Charging with Specialized Night Modes
Embrace tranquility with NIGHT and LOW modes that promise silent operation, making the charger ideal for noise-sensitive environments like bedrooms in RVs or overnight stays in marine cabins.
Robust Thermal Protection for Uninterrupted Charging
Stay confident even in high temperatures, as the Blue Smart Charger dynamically adjusts its output to prevent overheating, assuring continued operation without risking damage to your system.
Intuitive LED Interface for At-a-Glance Monitoring
Stay informed with a glance thanks to the clear LED indicators that convey the charger's status, mode, and health of the charging process, eliminating guesswork and simplifying maintenance.
With its comprehensive features and sturdy construction, the Victron Blue Smart IP22 Charger is your go-to for advanced battery management, ensuring your off-grid adventures and RV travels are always powered by reliability and efficiency.

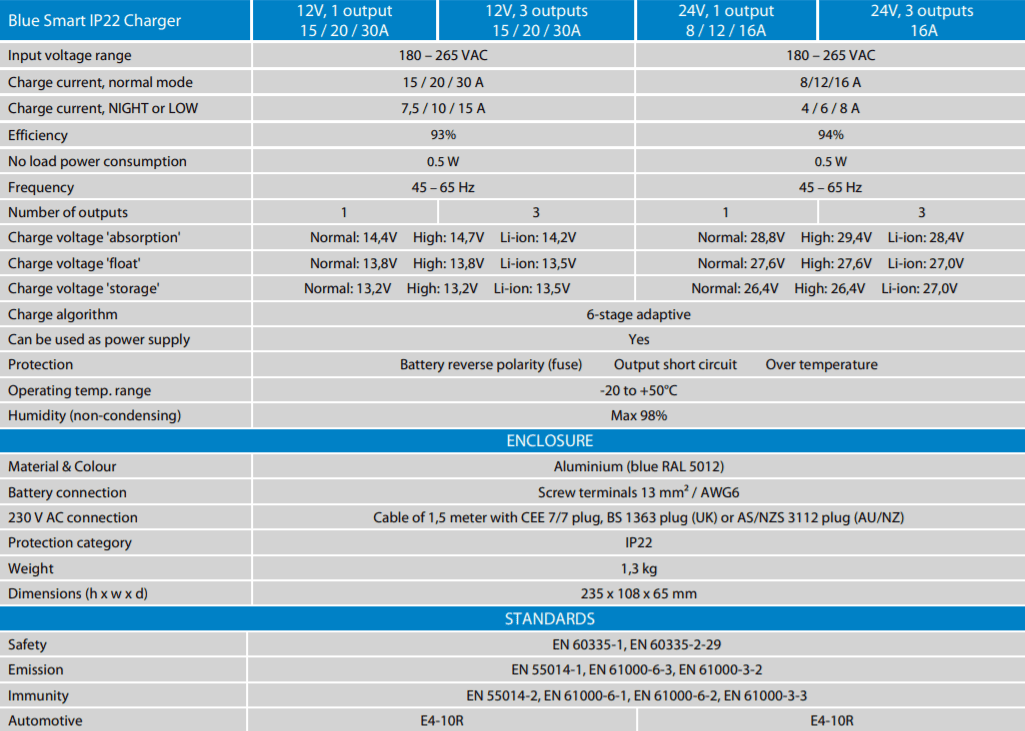

Specifications
| Blue Smart IP22 Charger | 24V, 1 output 8 / 12 / 16A |
|---|---|
| Input voltage range | 180 – 265 VAC |
| Charge current, normal mode | 16 A |
| Charge current, NIGHT or LOW | 8 A |
| Efficiency | 94% |
| No load power consumption | 0.5 W |
| Frequency | 45 – 65 Hz |
| Number of outputs | 1 |
| Charge voltage 'absorption' | Normal: 28.8V, High: 29.4V, Li-ion: 28.4V |
| Charge voltage 'float' | Normal: 27.6V, High: 27.6V, Li-ion: 27.0V |
| Charge voltage 'storage' | Normal: 26.4V, High: 26.4V, Li-ion: 27.0V |
| Charge algorithm | 6-stage adaptive |
| Can be used as power supply | Yes |
| Protection | Battery reverse polarity (fuse) Output short circuit Over temperature |
| Operating temp. range | -20 to +50°C |
| Humidity (non-condensing) | Max 98% |
| ENCLOSURE | |
| Material & Colour | Aluminium (blue RAL 5012) |

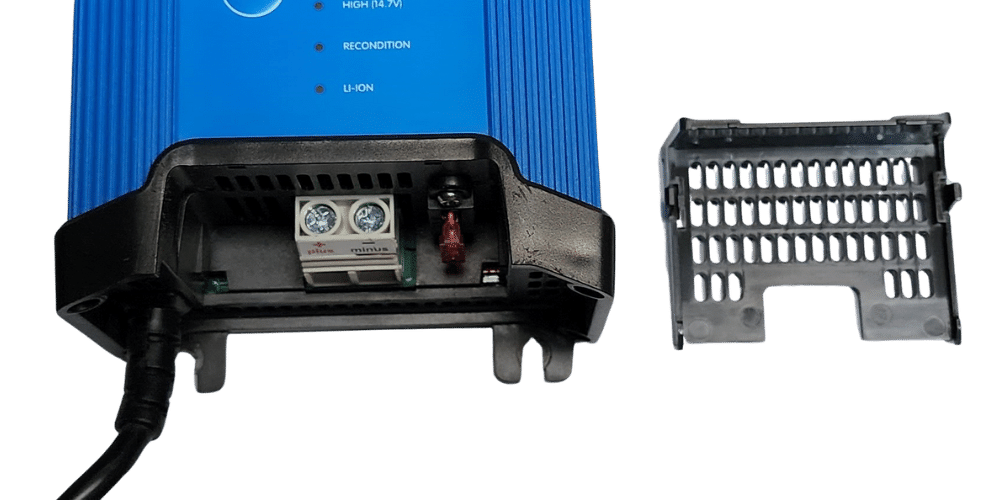

| Battery connection | Screw terminals 13 mm² / AWG6 |
| 230 V AC connection | Cable of 1.5 meter with AS/NZS 3112 plug (AU/NZ) |
| Protection category | IP22 |
| Weight | 1.3 kg |

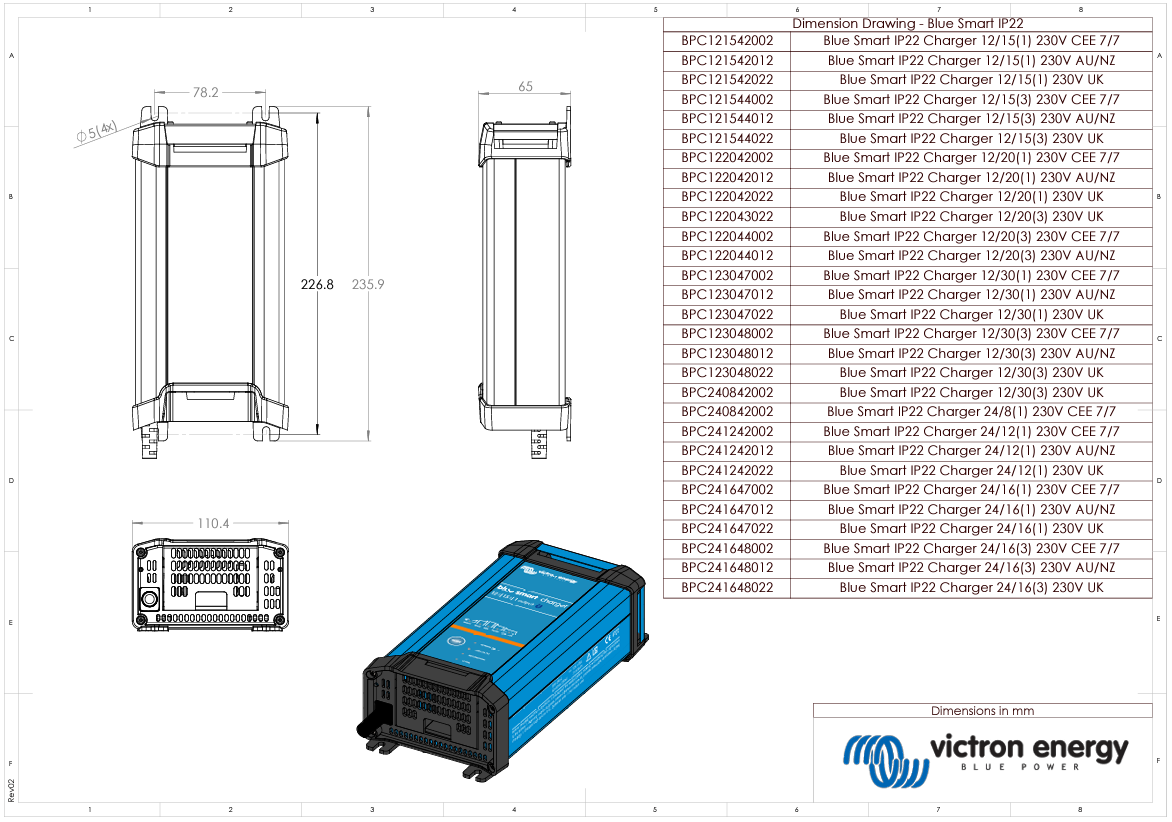

| Dimensions (h x w x d) | 235 x 108 x 65 mm |
| STANDARDS | |
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
| Immunity | EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
| Automotive | E4-10R |
